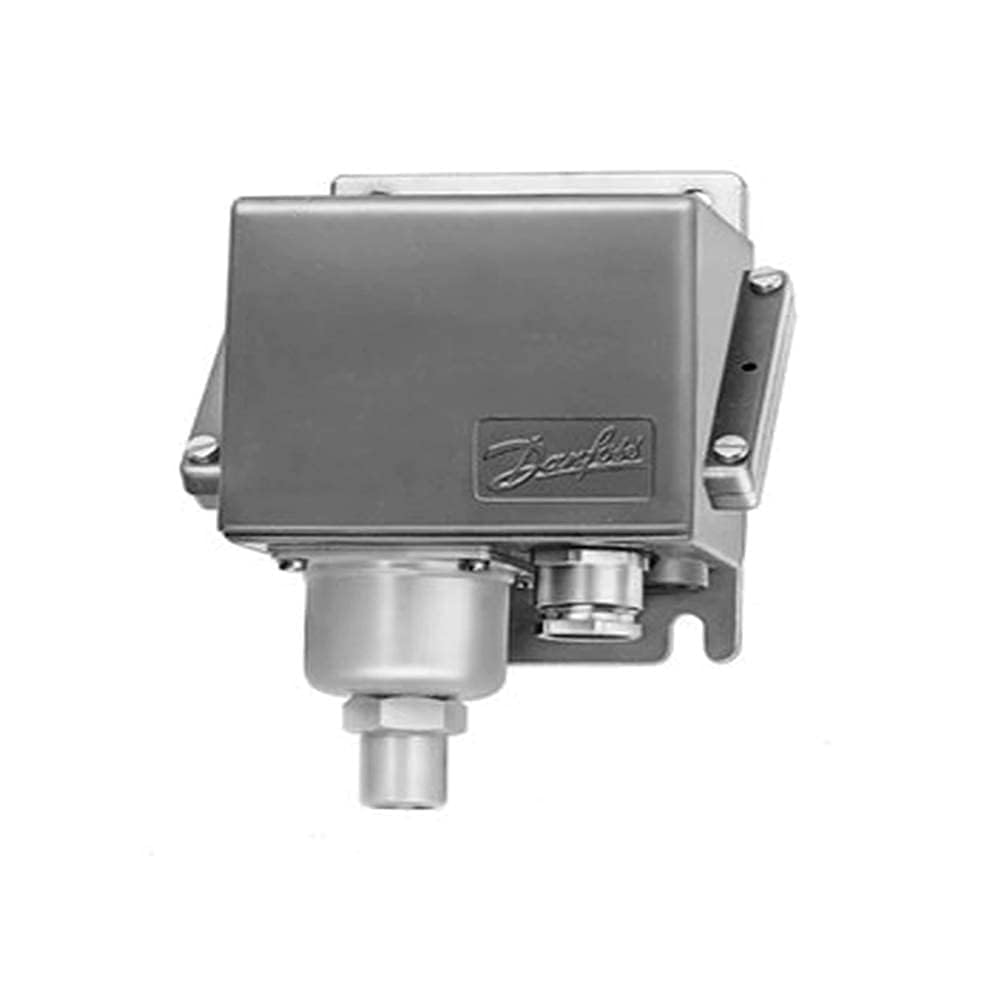

060-113766 KP36 Industrial Pressure Switch Sensor (Range: 2 Bar to 14 Bar)(29 to 203 PSI) for Boilers, Automobiles, Air Conditioning, Pumps. Model: (KP-36)
Product details
| Management number | 210905104 | Release Date | 2026/04/04 | List Price | $24.00 | Model Number | 210905104 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
KP36 Pressure Switch is used for regulating, monitoring, and alarm systems in the industry. KP 36 pressure switches are recommended for gaseous media (also water, but only when mounted directly on the pipe – do not use capillary tube mounting). and it is used for regulating, monitoring, and alarm systems in industrial applications. KP 36 Pressure Switch is suitable for gaseous media and air. The pressure switch is fitted with a single-pole switch changeover (SPDT) and can control single-phase ac motors of up to 2 kW directly.
- Ambient Temperature Range: -40°F to 149°F (-40°C to 65°C) | Differential Pressure Range:10 to 58 PSI | Regulation Range: 29 to 203 PSI | Max. Test Pressure: 319 PSI | Max. Working Pressure: 246 PSI
- Pressure range category: Medium pressure | Pressure Connections Size: 1/4" | Standard: ISO 228-1, Connection Type: G | Pressure Male/Female: Male | Enclosure rating IP: 30 | Electrical Connection: Rubber cable gland | Electrical connection size: 6-14 mm.
- Maximum Test Pressure: 319 PSI | Electrical Connection size: Pg 13.5 | Thread connection: G ¼ | Regulation range: 29 to 203 PSI | Electrical Connection: Screwed Cable Entry | Maximum Working Pressure: 246 PSI
- Enclosure rating IP: IP30 | Weight: 0.33 kg | Contact Function: SPDT (Single-pole changeover switch) gold | Pressure Connection Standard: ISO 228-1, pressure switch
- Supply Scope: 1 unit of KP 36 Pressure Switch with SS Reducers and Instruction Manual | Applications: Water Pump Control, Steam Boilers, Industry Applications, Refrigeration Compressors, Air Conditioning Systems, Turbines, Heavy Engineering, Industries, HVAC.
| Model | KP-36 |
|---|---|
| Terminal | Spdt |
| Brand Name | INSTRUKART |
| Unit Count | 1.0 Count |
| Item Weight | 550 Grams |
| Switch Type | Pressure Switch, Temperature Switch |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | INSTRUKART |
| Material Type | Acrylonitrile Butadiene Styrene |
| Mounting Type | Panel Mount |
| Connector Type | Clamp |
| Control Method | Touch |
| Current Rating | 20 Milliamps |
| Operation Mode | ON-OFF-ON |
| Item Dimensions | 4.33 x 3.74 x 2.17 inches |
| Number of Items | 1 |
| Contact Material | Brass |
| Operating Voltage | 220 Volts (DC) |
| Included Components | 1 unit of KP 36 Pressure Switch with SS Reducers and Instruction Manual |
| Number of Positions | 2 |
| Warranty Description | NO Warranty |
| International Protection Rating | IP30 |
