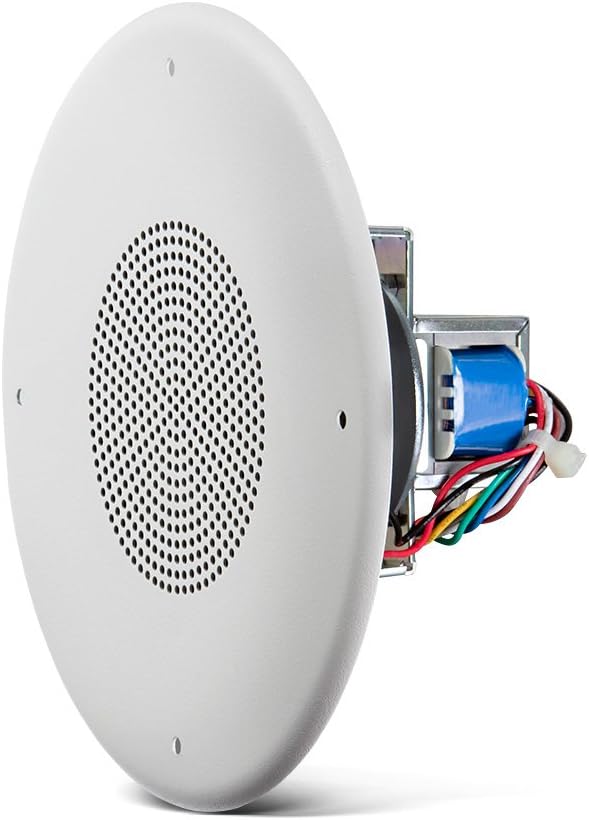

JBL Professional CSS8004 Commercial Series 5-Watt Ceiling Speaker, 4-Inch, White
Product details
| Management number | 209161898 | Release Date | 2026/03/29 | List Price | $12.48 | Model Number | 209161898 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Introducing JBL Professional's Commercial Series Ceiling Speakers, the ideal choice for paging and background music applications. Designed with high sensitivity, these speakers deliver maximum sound levels even at low tap settings, making them perfect for retail stores, restaurants, schools, and other facilities. The CSS8004 model features a robust 100 mm (4 in) dual cone speaker with 90 dB sensitivity and a 5-Watt multi-tap transformer, ensuring clear and efficient audio performance. Crafted for reliability and durability, our ceiling speakers come equipped with a 25 mm (1 in) diameter voice coil, Kapton coil-former, and high-temperature wire. These components enhance power dissipation and long-term reliability, ensuring that your investment lasts. The speaker grille and transformer are pre-attached to the driver for easy installation, saving you time and effort. For added convenience, optional matching back cans (CSS-BB4x6) made of zinc-plated steel with a powder-coated finish are available. These back cans can be installed, wired, and inspected prior to the speaker installation, streamlining the setup process. The frequency range of the driver/grille assembly spans from 85 Hz to 18 kHz, and when installed in the CSS-BB back-can, it ranges from 130 Hz to 18 kHz. Choose JBL Professional's Commercial Series Ceiling Speakers for your next project and enjoy the perfect blend of performance, reliability, and ease of installation. Enhance your space with high-quality sound and seamless integration, making these speakers the go-to choice for many commercial settings.
- Round Ceiling Speaker, 4” Driver. 5-Watt Multi-Tap Transformer for 100V, 70V and 25V Distributed Lines. High sensitivity 90 dB for maximum sound level, even at low tap settings. Single Speaker (not a pair).

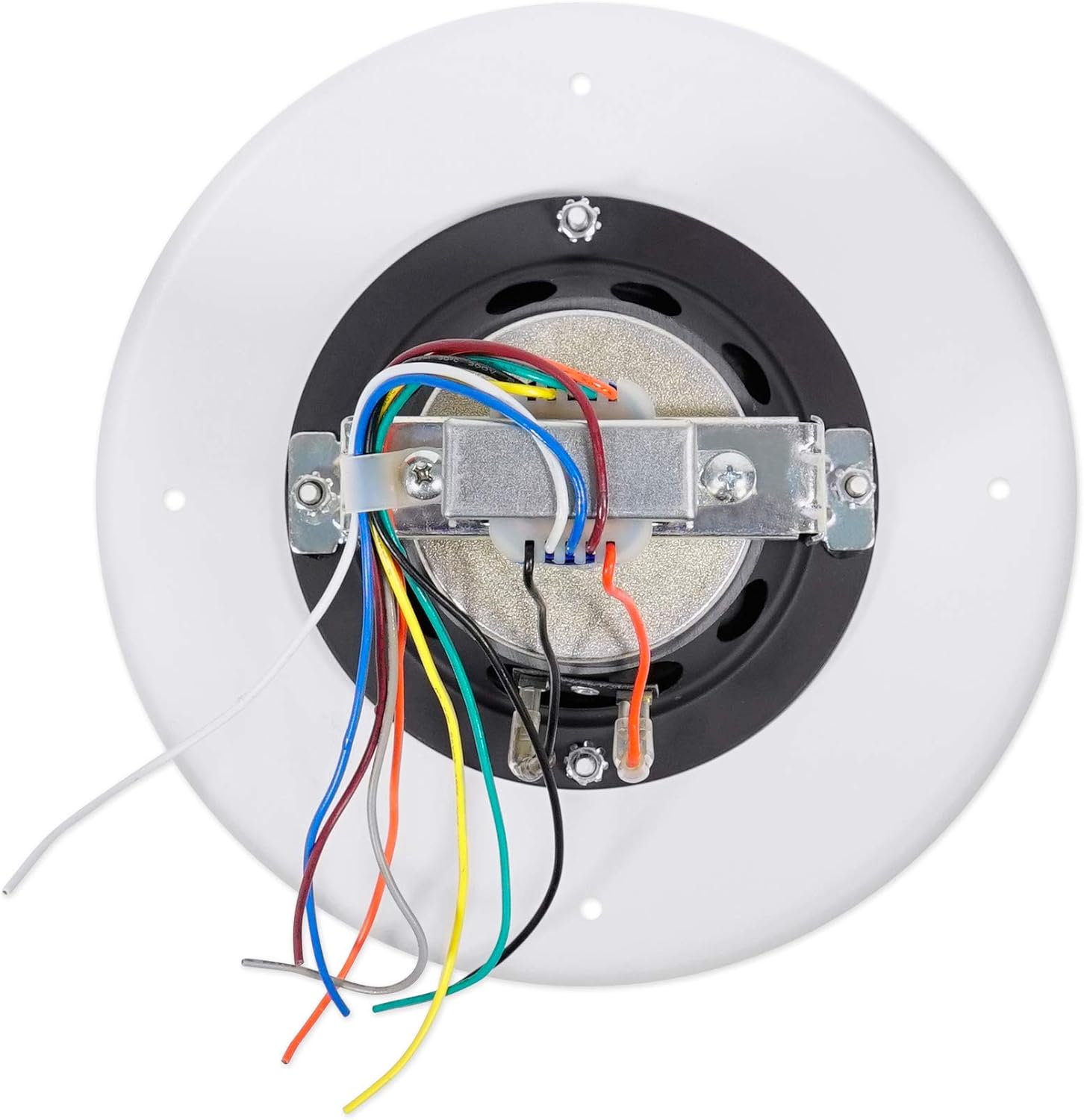

- Pre-assembled speaker / transformer / grille assembly. For added convenience, code-ratings, and sound control, optional matching back cans (CSS-BB4x6) made of zinc-plated steel with a powder-coated finish are available.
- Very wide 175 degree coverage. Very high 90dB sensitivity provides maximum sound levels using minimal amplifier power.
- Suitable for most paging or background music applications, including retail stores, restaurants, schools, and other facilities.
- Quality triple-voltage transformer (100V, 70V and 25V).
| UPC | 050036903912 |
|---|---|
| Brand | JBL |
| Color | White |
| Impedance | 8 Ohms |
| MP3 player | No |
| Model Name | CSS8004 |
| Unit Count | 1.0 Count |
| Item Weight | 2.5 Pounds |
| Manufacturer | JBL Professional |
| Model Number | CSS8004 |
| Power Source | Corded Electric |
| Speaker Size | 4 Inches |
| Speaker Type | In-Ceiling |
| Input Voltage | 100 Volts (AC) |
| Is Waterproof | False |
| Mounting Type | Ceiling Mount |
| Warranty Type | Manufacturer Limited |
| Control Method | App |
| Item Type Name | JBL Professional CSS8004 Commercial Series 15W Ceiling Speaker, 4", White (CSS8004) |
| Controller Type | Hand Control |
| Number of Items | 1 |
| Woofer Diameter | 4 Inches |
| Antenna Location | Music |
| Audio Driver Size | 100 Millimeters |
| Audio Driver Type | Dynamic Driver |
| Audio Output Mode | Mono |
| Compatible Devices | Smartphone, Tablet, Laptop, Television |
| Enclosure Material | Plastic |
| Frequency Response | 18 KHz |
| Subwoofer Diameter | 4 Inches |
| Additional Features | Lightweight |
| SignaltoNoise Ratio | 90 dB |
| Wireless Technology | Wired |
| Warranty Description | The jbl warranty on professional loudspeaker products (except for enclosures) remains in effect for five years from the date of the first consumer purchase. |
| Connectivity Protocol | Low-Voltage Line Connection |
| Number of Power Levels | 3 |
| Water Resistance Level | Water Repellent |
| Connectivity Technology | Wired |
| Number of Audio Channels | 1.0 |
| Item Dimensions D x W x H | 3.9"D x 7.8"W x 7.8"H |
| Specific Uses For Product | Fixed Installations, Paging, Background Music |
| Compatible with Vehicle Type | Car |
| Speaker Maximum Output Power | 15 Watts |
| Subwoofer Connectivity Technology | Wired |
| Global Trade Identification Number | 00050036903912 |
